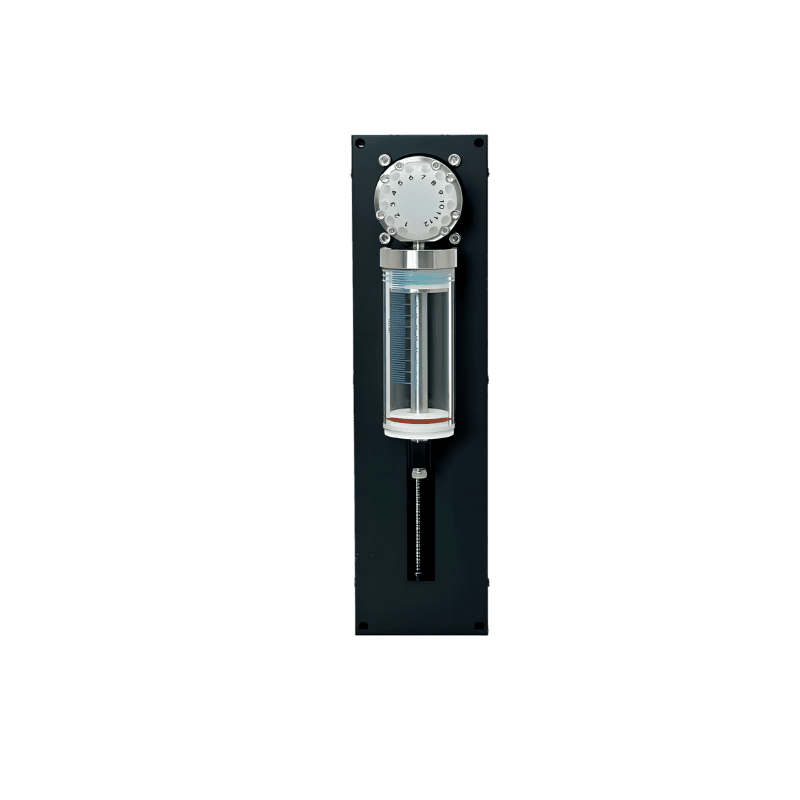

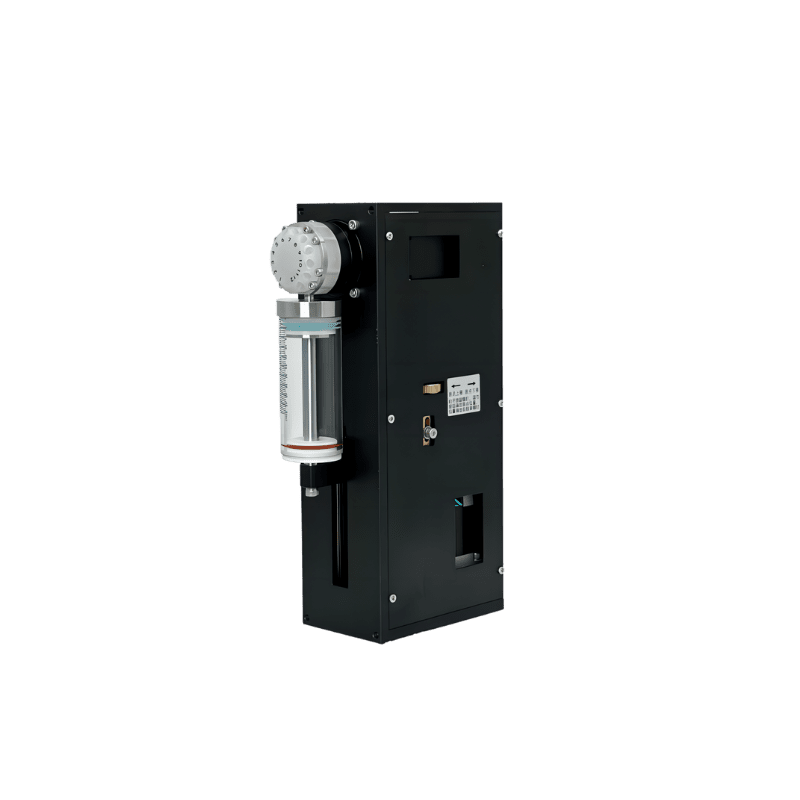

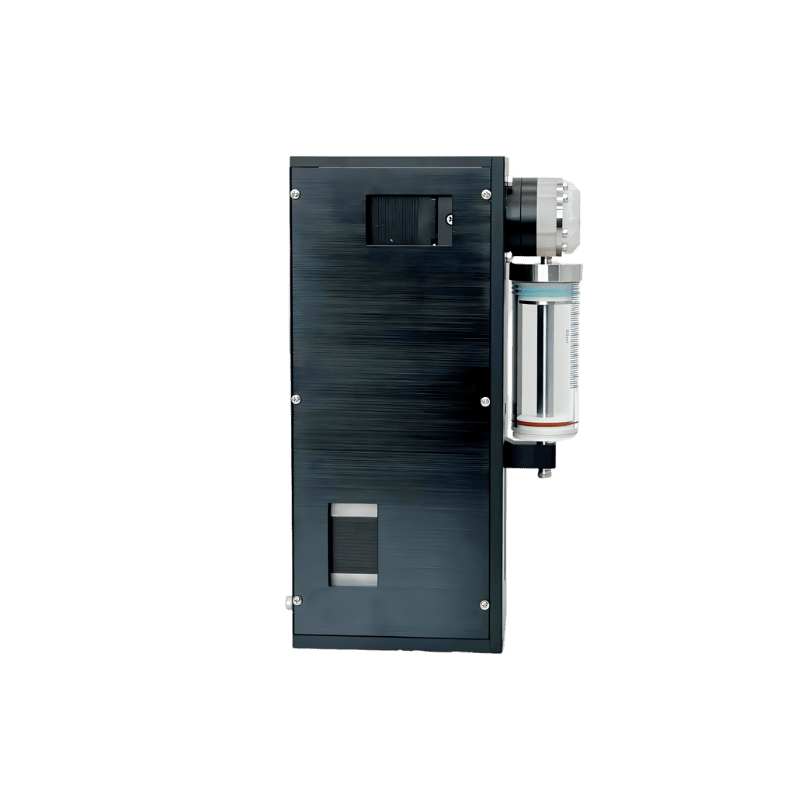

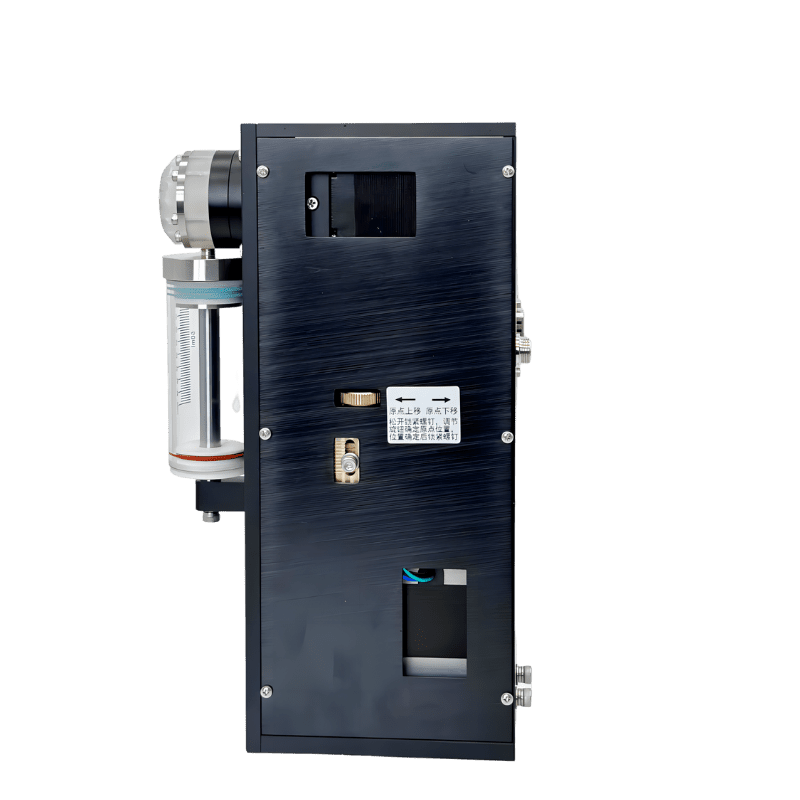

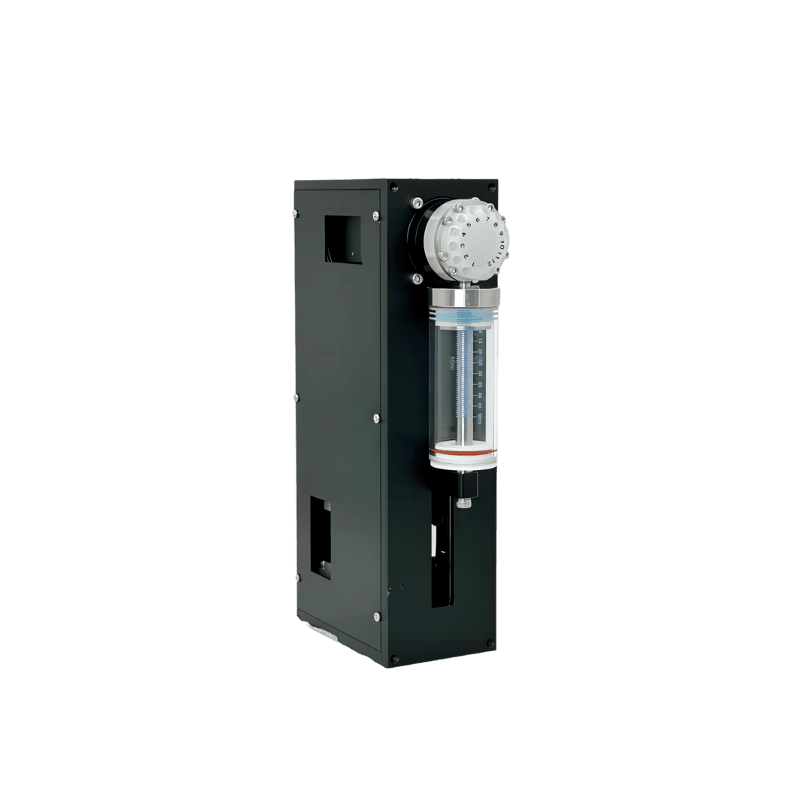

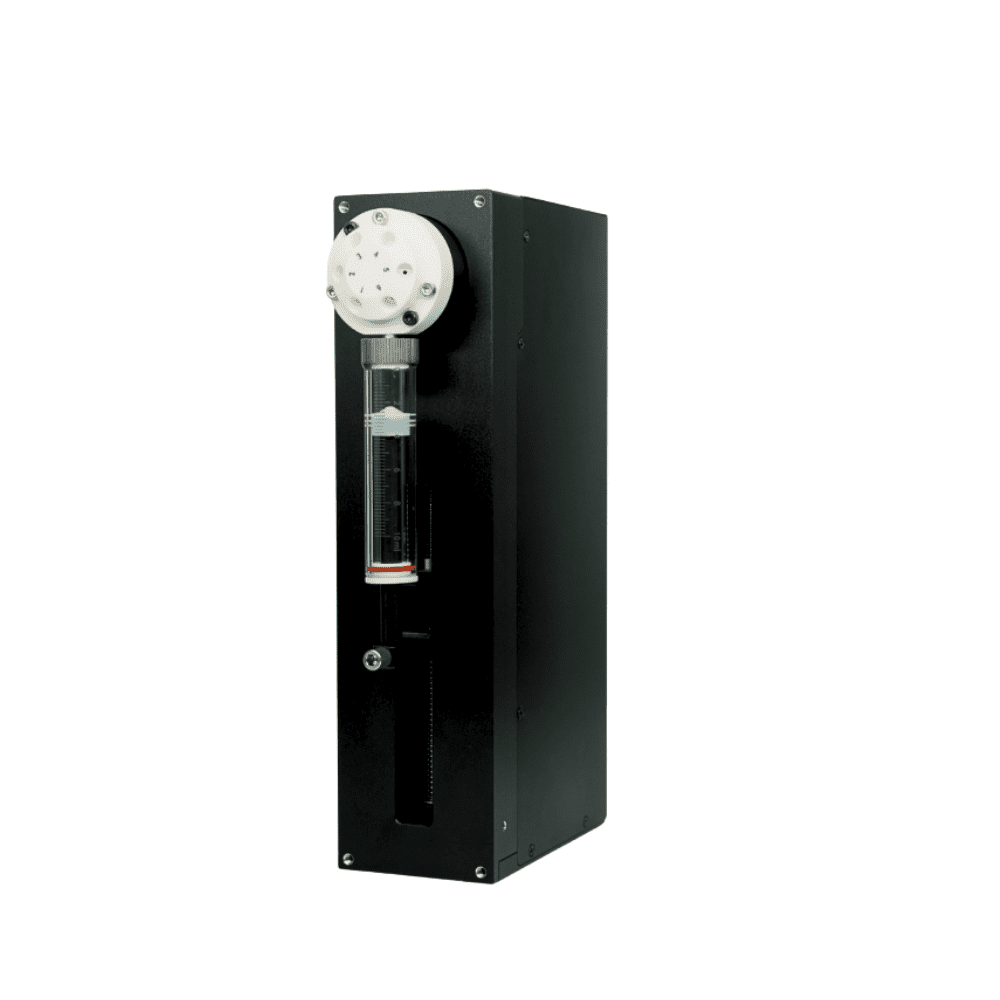

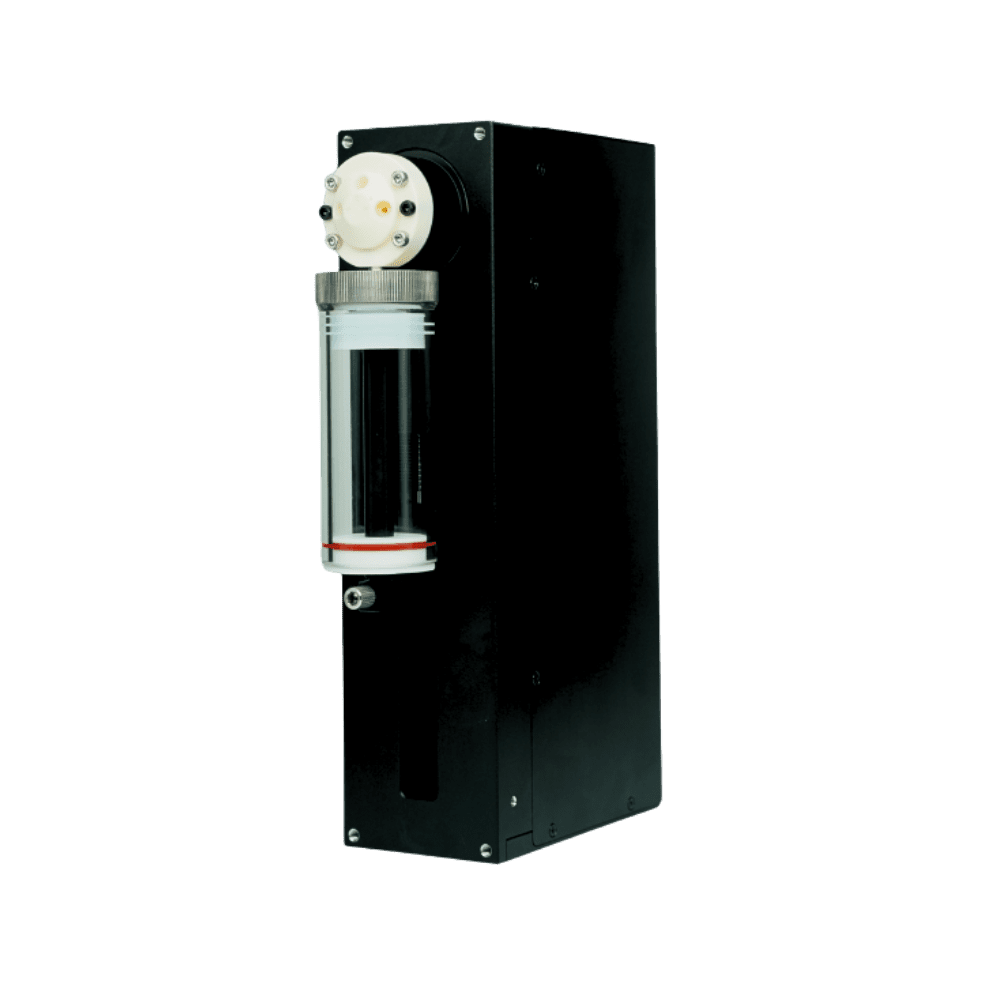

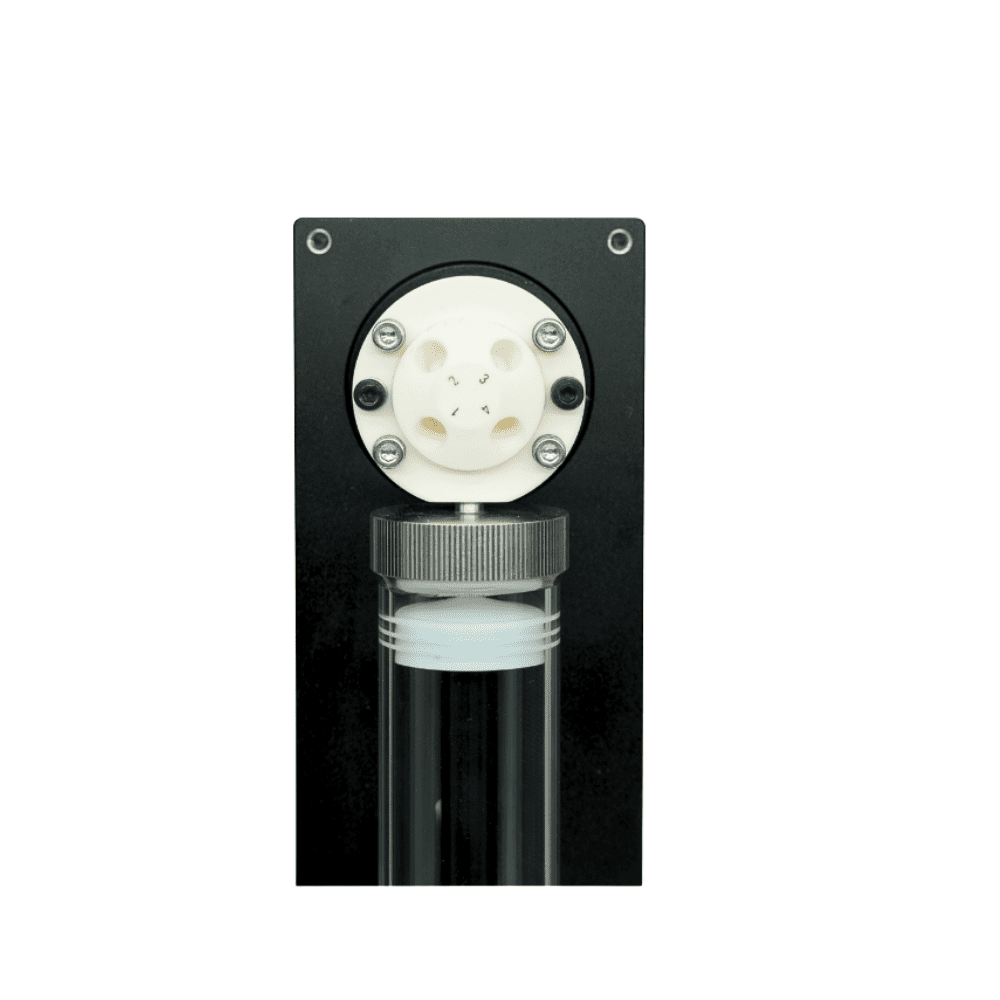

DP-01-60 is a compact Industrial syringe pump module designed to handle precision liquid handling application. The applicable syringes are special designed glass syringes from 25uL to 50mL. The new syringe pump communicates through RS- 485 or RS-232 interface, with multi-pump arrangements of up to 15 pumps in one group, supports group control and individually addressed. The pump is ideal for auto pipetting, sample dilution or mixing and/or sample dispensing in analytical instruments.
Key Features
Fully automated sampling, mixing, and dispensing
High flow rate accuracy: ≤ 1% (rated stroke)
Repeat Precision: ≤2.5‰（rated stroke）
Simple OEM integration with functional instruments
Chemical resistant wetting materials
Output pressure and clog sensing function
Holds syringes with volumes ranging from 25ul to 50 mL
Linear speed: 0.0333mm/s to 15 mm/s (ID water as media tested)
Max resistance: 0.7 MPa

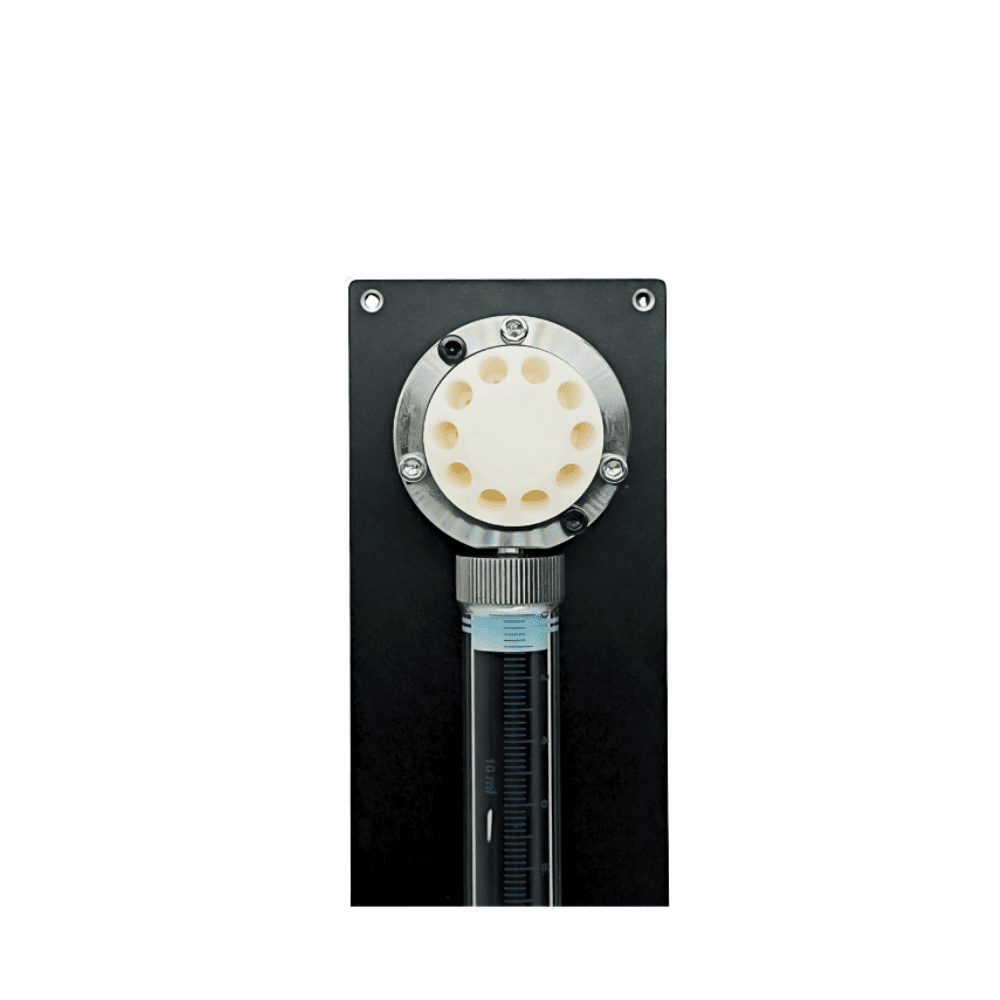

Rotary vale and accessories are included (multiple valve options)
Rated stroke: 60mm(768000 steps micro-step mode)
RS485/RS232 communication available
Ball screw drive with optical encoder
Voltage/current: 24VDC/2.5A
| Model | DP-01-60 |
|---|---|
| Accuracy | ≤1.0% at full stroke |
| Precision(Repearability) | ≤0.25% at full stroke |
| Rate Stroke(Control Steps) | 60mm(768000steps micro-step mode) |
| Running time(per rated stroke) | 2s-900s(media: water; 1rated stroke=1time) |
| Linear Speed | 0.0333mm/s-15mm/s(media: water; 1rated stroke=1time) |
| Max. Speed | 450rpm |
| Max Pressure | 0.7Mpa |
| Wetted Material | Borosilicate Glass, PTFE, ETFE,Sapphire |
| Resolution | 0.005mm(1step) |
| Drive System | Ball screw drive with optical encoder |
| ILS Syringe | 25ul,50ul,100ul,250ul,500ul, 1ml, 2.5ml,5ml,10ml,25ml,50ml |
| Syringe Fitting | 1/4''-28 thread |
| Baud Rate(Bps) | 9600/19200/38400/57600/115200, RS485/232 |
| Protocol | Data terminal, OEM Protocol(serial) |
| Power Supply | DC24V/1.5A |
| Operating Temperature | 5℃~55℃ |
| Operating Humidity | ＜80% RH,Non-condensing |
| Storage Temperature | 15℃~65℃ |
| Dimension(L*W*H) | 155*65*254mm |
| Net Weight | 2.5kg |
