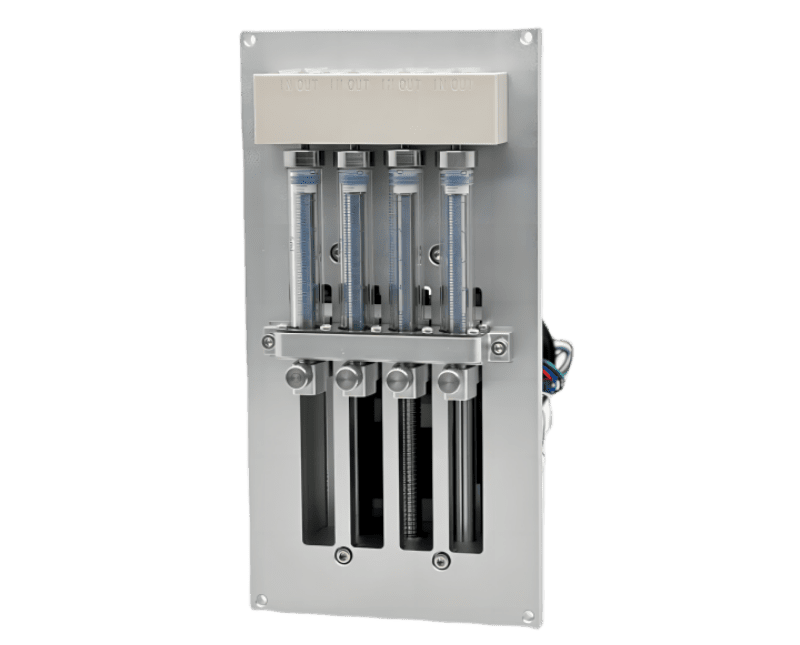

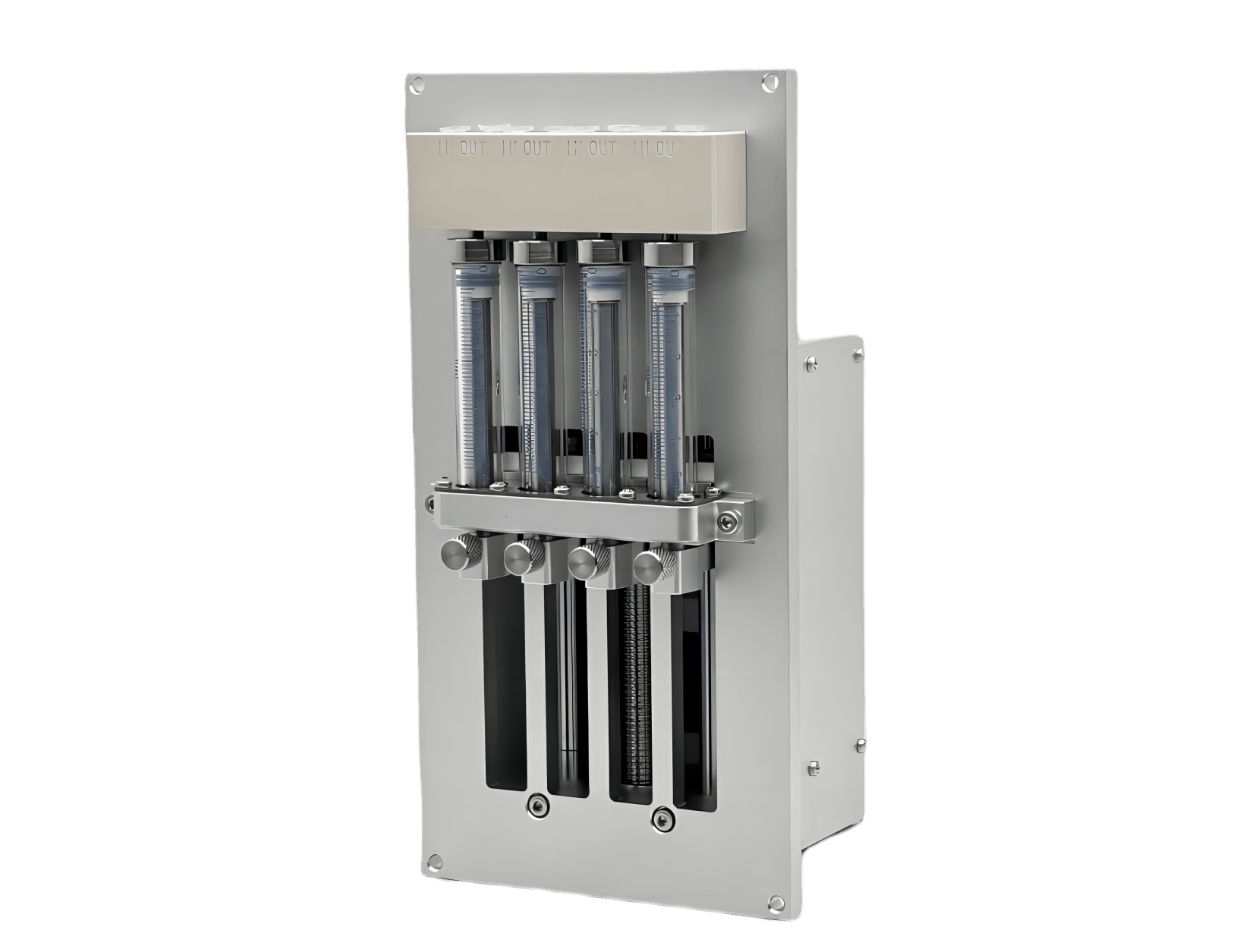

DP-02 Micro Multichannel Syringe Pumpp can realize 2~8 pumps in parallel, and has a wide range of speed and a variety of injector options, which greatly reduces the volume of the pump and is convenient for users to install.
1 Wide selectivity, 25ul~5ml multiple injectors can be selected;
2 The parts in contact with the liquid medium have good chemical resistance, and the solenoid valve and PEEK valve seat integrated with the perfluoroether valve plate on the pump are more corrosion-resistant and have a longer life;
3Using ultra-high-precision pistons to make the precision higher;
4 Special sealing structure, good corrosion resistance and good creep resistance;
5 Anti-overshoot photoelectric limit detection;
| Accuracy | ≤1.0% at full stroke |
|---|---|
| Precision(Repearability) | ≤0.5% at full stroke |
| Wetted Material | Borosilicate Glass, PTFE, ETFE,Sapphire |
| Syringe Fitting | 1/4''-28 thread |
| ILS Syringe | 25ul,50ul,100ul,250ul,500ul,1ml,1.25ml,2.5ml,5ml |
| Rate Stroke(Control Steps) | 60mm(798000steps micro-step mode)/12000step(full step) |
| Drive System | Ball screw drive with optical encoder |
| Max Pressure | 0.7Mpa |
| Max. Speed | 450rpm |
| Baud Rate(Bps) | 9600/19200/38400/57600/115200, RS485/232 |
| Protocol | Data terminal, OEM Protocol(serial) |
| Power Supply | DC24V/3.5A |
| Storage Temperature | 15℃~65℃ |
| Operating Humidity | ＜80% RH,Non-condensing |
| Operating Temperature | 5℃~55℃ |
| Dimension(L*W*H) | Different model different dimension |
| Warranty | 1Year |
| Service Life | 3Million times no leakage (Media:water) |
| Delivery Time | About 20~25 Working days |
