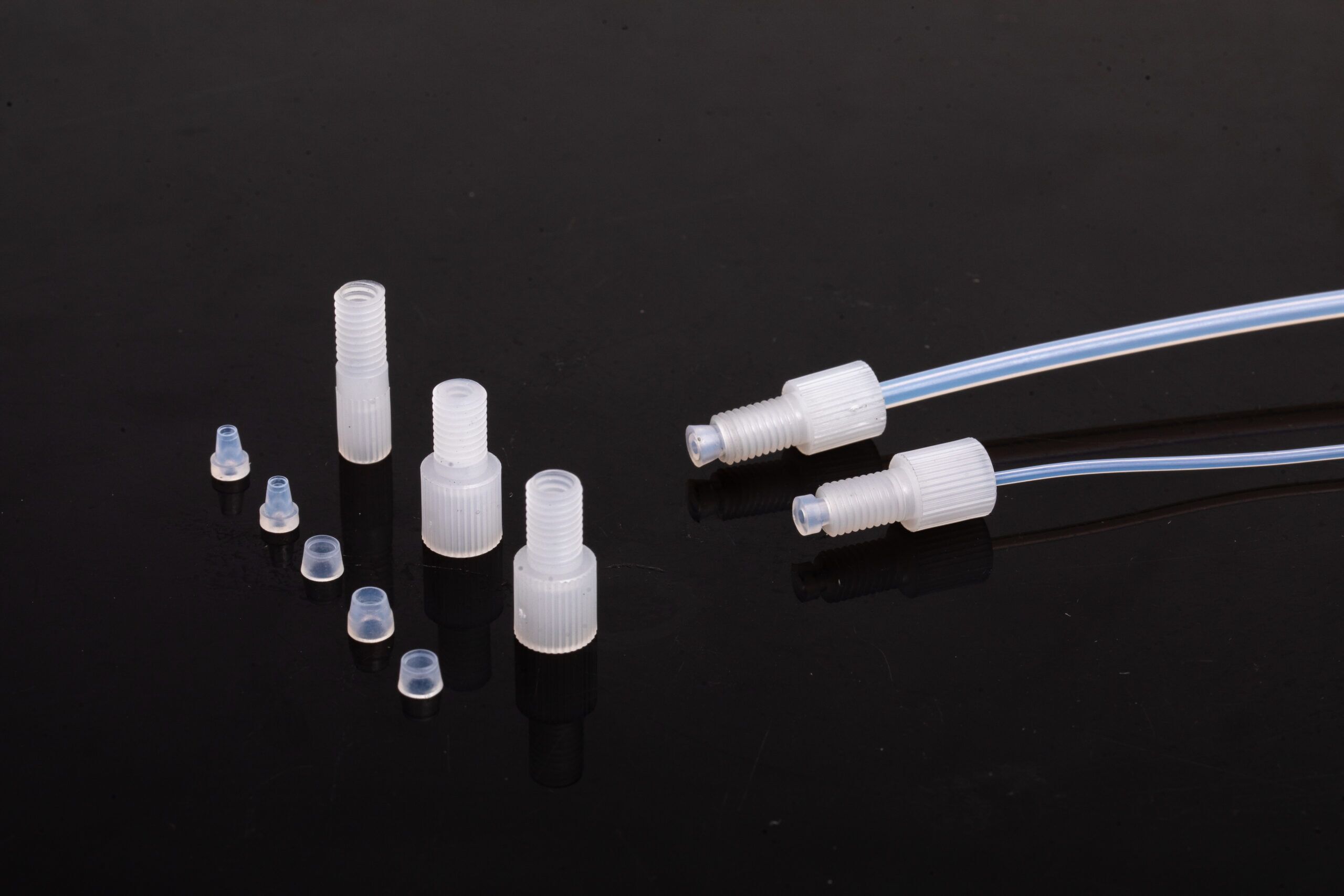

The threaded sleeve and washer with external thread can be tightly connected, in the case of PTFE, FEP, PFA and other pipelines; the reverse taper plug joint is easy to install, and a high-tight interface can be obtained without using other tools.
Core Technology

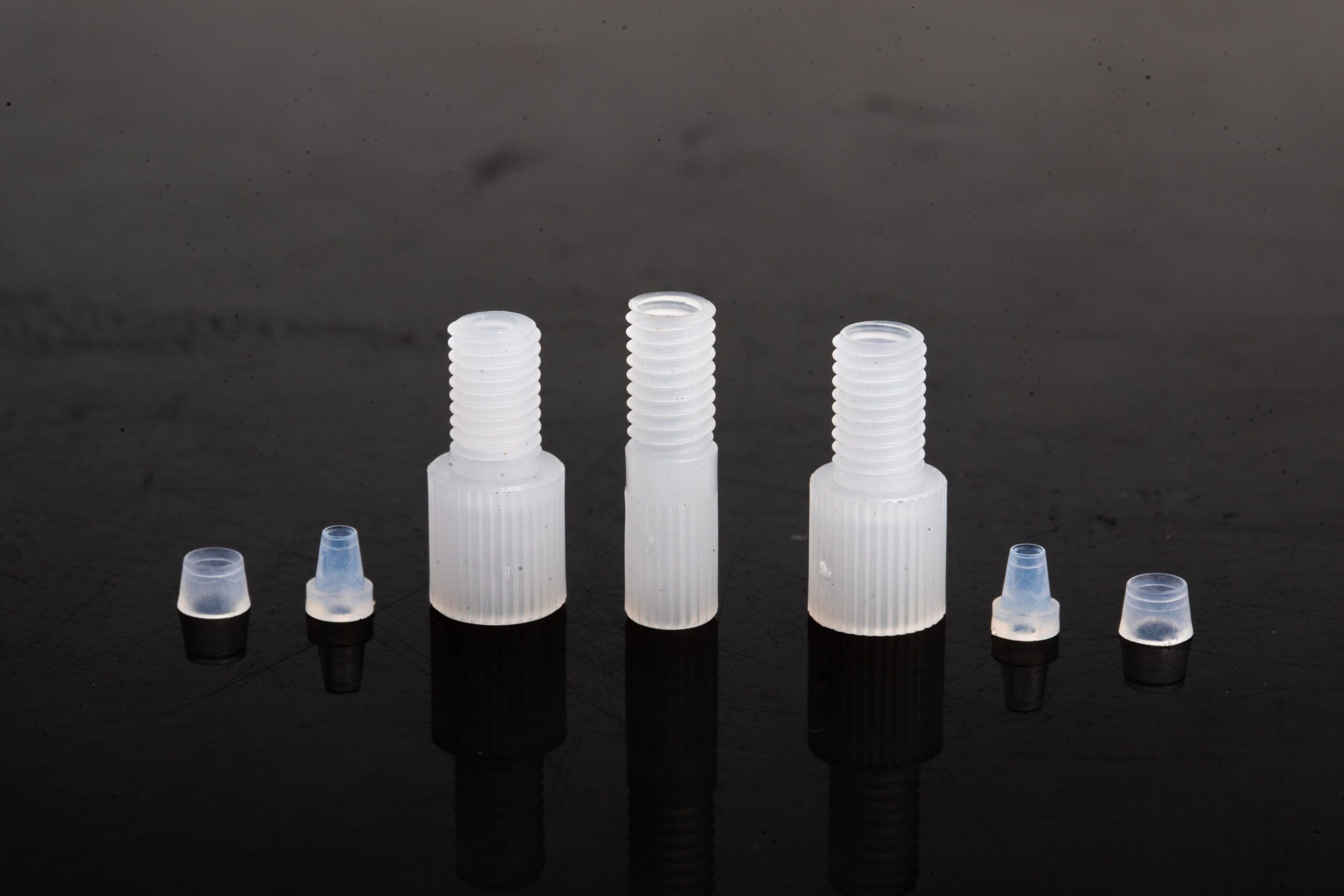

1. Resistant to strong chemical corrosion, the threaded casing is made of ETFE, and the conical washer is made of PFA, which has good solvent resistance;
2. Complete specifications, two sizes of hard pipes with outer diameter of 1.6mm (1/1 6″) and 3.2mm (1/8 “) can be used;
3. Quick and easy installation, can be assembled without tools;
Instructions

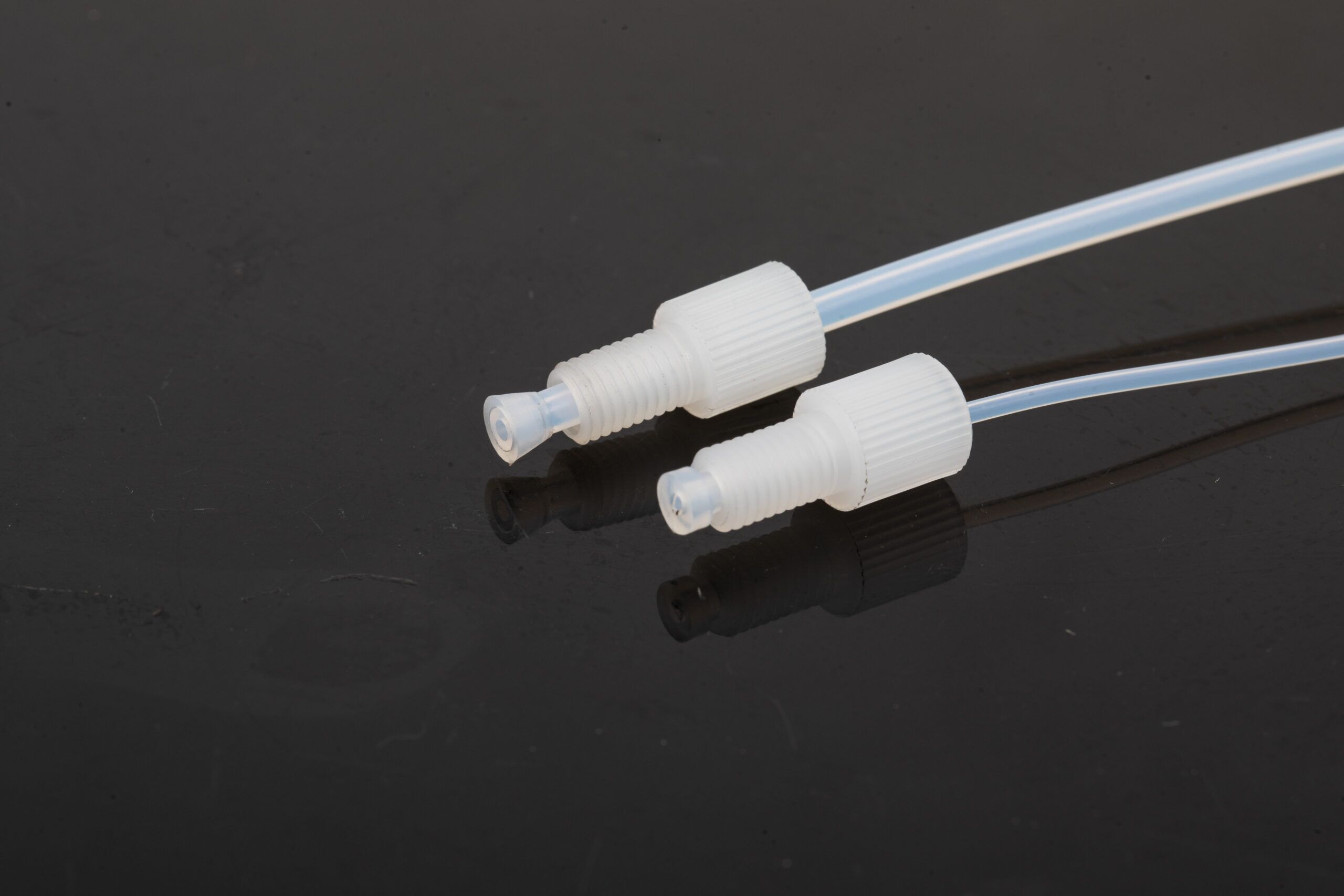

1. Cut the bottom of the pipe flat, put on the threaded sleeve and the conical washer in turn, and the bottom of the washer is flush with the bottom of the pipe;
2. The threaded casing is 1/4-28UNF or M6 thread, which can be used after tightening;
3. The taper angle of the gasket matches the height of the bottom of the casing;
4. When the threaded casing is tightened, the casing compresses the washer, so that the washer can seal the joint;
| Casing thread | 1/4~28UNF / M6 |
|---|---|
| Casing material | ETFE |
| Gasket material | PFA |
| Washer size | Inner dia. 1.6mm/ Inner dia. 3.2mm |
| Max Pressure | 0.7Mpa |
| Application Media | Various highly corrosive chemical media, pure fluids |
