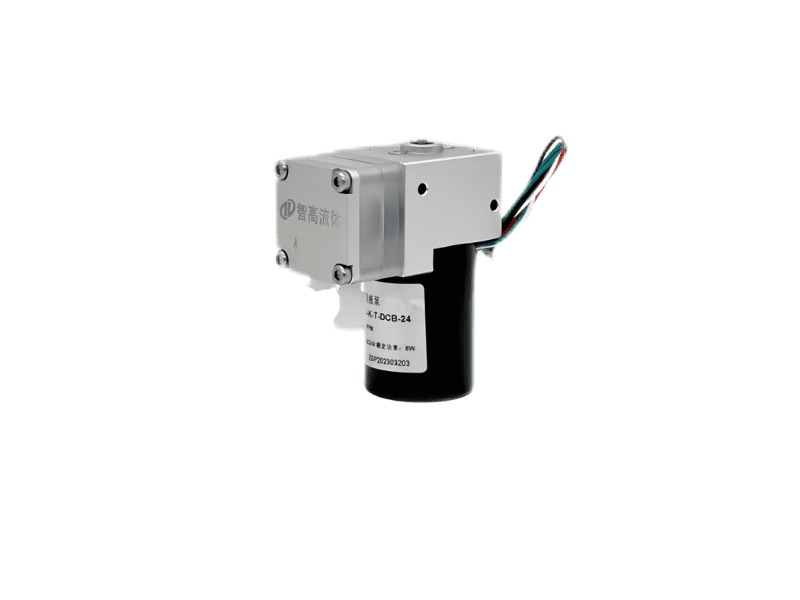

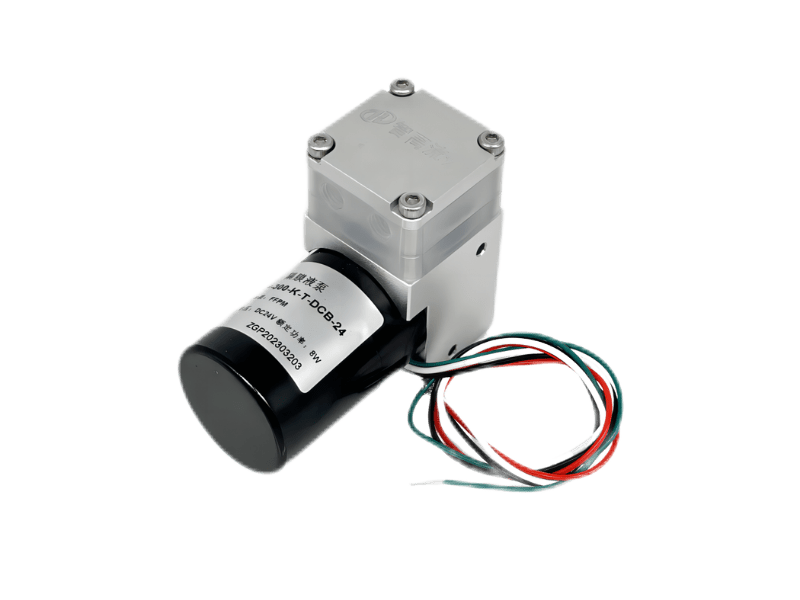

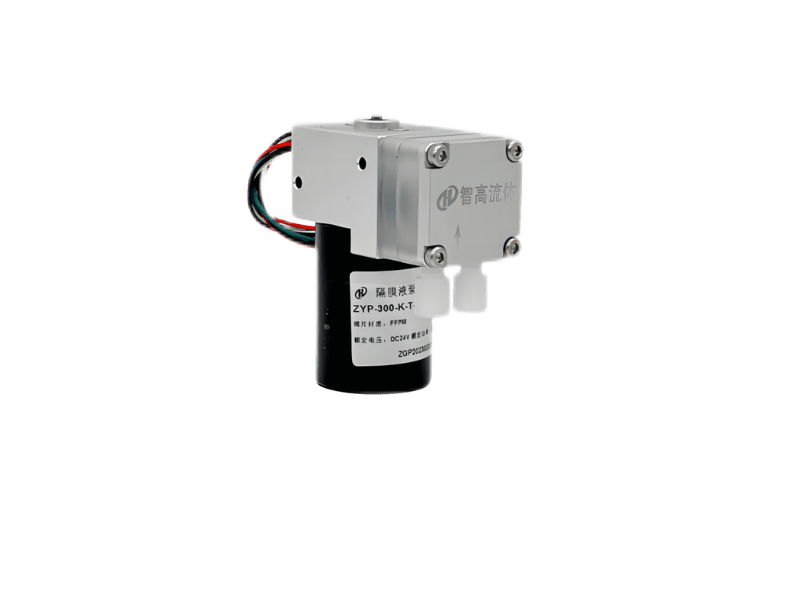

Zyp-300 series PTFE diaphragm liquid pump is designed according to the principle of positive displacement pump. The motor pushes the diaphragm to reciprocate through the transmission structure, and controls the closing and opening of the valve plate, thereby forming the suction and discharge of the liquid.
Core technology
1. Resistant to strong chemical corrosion, the diaphragm liquid pump has a special diaphragm (the surface of the diaphragm has a composite PTFE coating), and the pump head is made of PCTFE material, so it can withstand most corrosive liquids;
2. Safe operation and long service life;
3. Oil-free, maintenance-free;
4. Small vibration and low noise;
5. The mini design and performance are maximized, and the product can be built-in;
6. Simple installation.
| Rated lift | 1.5bar |
|---|---|
| Suction lift at rated current | ≥0.35mWG |
| Flow at rated current | ≥300ml/min |
| Water pressure at rated current | 1.2bar |
| Noise at rated current | 52db |
| Rated power | 8W/12V |
| Rated speed | 3200~3300r/min |
| Max. Speed | 3300r/min |
| Stall current | 1.2A motor protection current |
| Stall water pressure | ≥10bar |
| Rating life | 10000h |
| Faucet interface Diameter | Φ2.5mm |
| Nozzle Diameter | Inside Dia.2.4~3.2mm hose |
