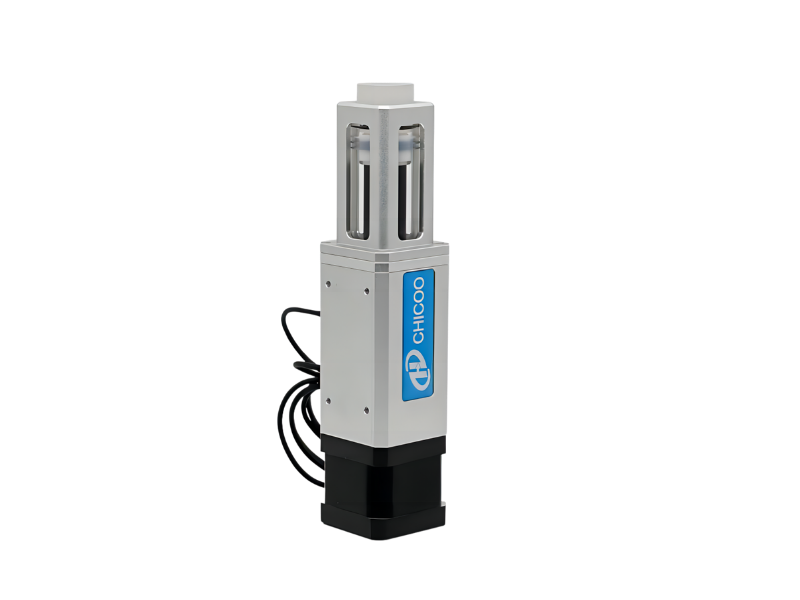

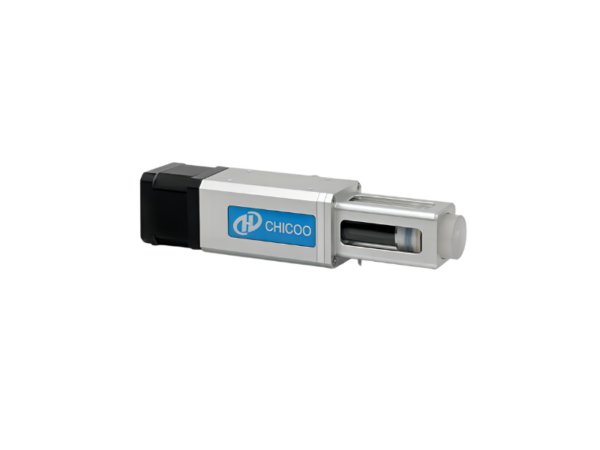

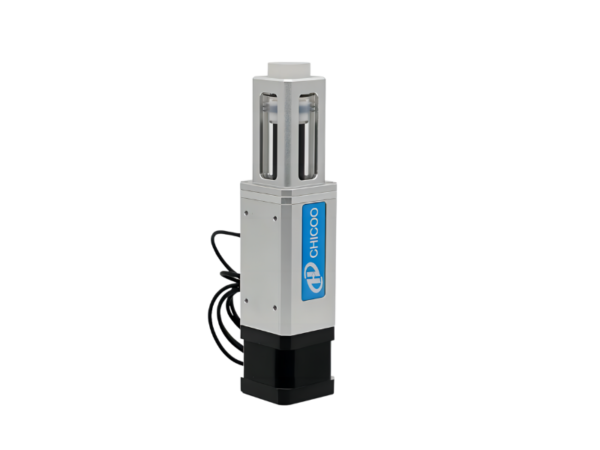

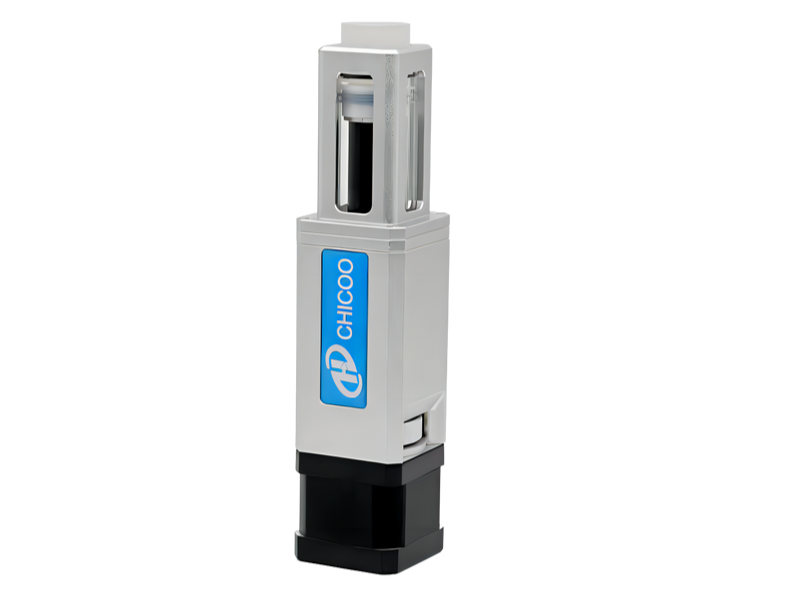

LDP-01 Industrial syringe pump is small in size, easy to operate, can realize precise sampling and reagent distribution, and has extremely high precision and accuracy of suction and discharge.
Core technology
1. Wide selection, three displacements of 5ml, 12.5ml and 25ml are optional;
2. The new handwheel structure makes installation and debugging more convenient;
3. Ultra-high precision piston, higher precision;
4. Special sealing structure, good wear resistance, good creep resistance, more corrosion resistance and longer life;
5. Good chemical resistance of parts in contact with liquid medium;
6. Anti-overshoot photoelectric limit detection;
| ILS Syringe | 5ml/12.5ml/25ml |
|---|---|
| Stroke | 30mm |
| Rate Stroke (Control Steps) | 6000steps(full step), 384000steps(64subdivision) |
| Drive System | Ball screw drive with optical encoder |
| Accuracy | ≤1.0% at full stroke |
| Precision(Repearability) | ≤0.5% at full stroke |
| Wetted Material | Borosilicate Glass, PTFE, ETFE |
| Syringe Fitting | 1/4''-28 UNF thread |
| Max Pressure | 0.7Mpa |
| Max. Speed | 450rpm |
| Baud Rate(Bps) | 9600/19200/38400/57600/115200, RS485/232 |
| Protocol | Data terminal, OEM Protocol(serial) |
| Power Supply | DC24V/1.1A |
| Storage Temperature | 15℃~65℃ |
| Operating Temperature | 5℃~55℃ |
| Operating Humidity | ＜80% RH,Non-condensing |
| Dimension(L*W*H) | Different model different dimension |
| Service Life | 3Million times no leakage (Media:water) |
| Delivery Time | About 20~25 Working days |
